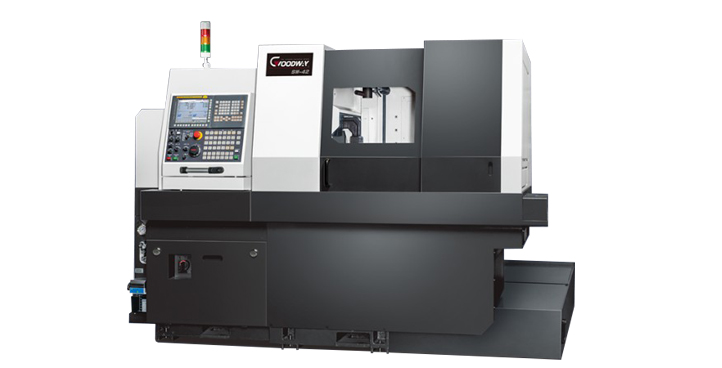

GOODWAY SW-32 SWISS TURNING CENTER
| CAPACITY | SW-42 | ||
|---|---|---|---|
| Working range | Max. machining diameter | Ø42 | |
| Max. turning length per chuck (mm) | 180 / 110 (bush / bushless) | ||
| O.D. tools | Number of tools | 5 | 6 |
| Shank size (mm) | □20 | □20 × 1 / □16 × 5 | |
| I.D. tools | Number of tools | 5 | |
| Sleeve size | ER20 | ||
| Cross live tools | Number of tools | 4 ~ 10 | |
| Max. spindle speed (rpm) | 6,000 | ||
| Spindle | Max. spindle speed (rpm) | 6,000 | |
| Motor output (cont.) kW | 5.5 | ||
| Motor output (30 min.) kW | 7.5 | ||
| BACKWORKING TOOLING SYSTEM | |||
| Back processing capacity | Max. chucking diameter (mm) | Ø42 | |
| Max. length for front ejection (mm) | 110 | ||
| Rear-end tools | Number of tools | 4 | |
| Max. spindle speed (rpm) | 5,000 | ||
| Sub-spindle | Max. spindle speed (rpm) | 6,000 | |
| Motor output (cont.) kW | 3.7 | ||
| Motor output (30 min.) kW | 5.5 | ||
| Preferred Equipment | |
|---|---|
| Preferred equipment of leading European watch manufacturers. | |
| Optimal Production | |
| Optimal production solution for small and medium-diameter workpieces. | |
| Flexible Tooling System | |

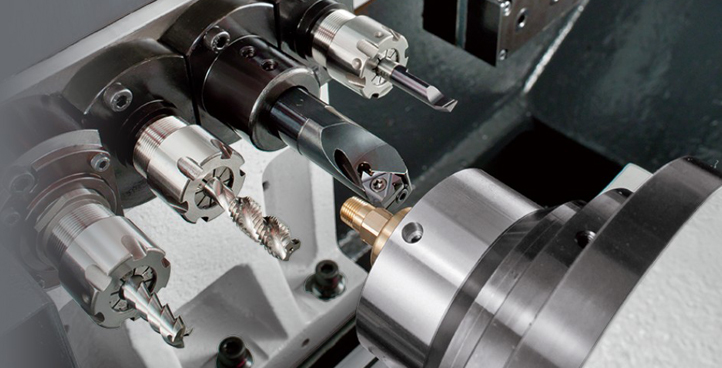

| The complete tooling system enables turning, milling, drilling, and tapping on the front, side, and rear in a single setup. | |
| Various live tooling holders such as hobbing, slotting, and thread whirling can be installed as needed. | |
| Comprehensive Machining Capability | |
| The hybrid guide bushing design allows switching between guide bush and bushless bushing modes based on production needs. | |
| The clamping mechanism uses rotary hydraulic cylinder drive design, providing ample clamping force to meet the demands of heavy cutting. | |
| Control Functions | |
| Standard “Air Bag” function to prevent significant cost losses in case of accidental collisions. | |
| Optional “OCR Oscillation Cutting” function effectively prevents chip entanglement and improves machine utilization. |
| Optional Features | |
|---|---|
| Coolant through tool | |
| Coolant through sub-spindle | |
| Hobbing | |
| Manual handle retrace | |
| Chip conveyor | |
| Electrical cabinet A/C cooling system | |
| Oil mist collector | |
| High pressure coolant system |
GOODWAY GLS-2000LM CNC LATHE
| GLS-1500 / L | GLS-2000 / L | |
|---|---|---|
| CAPACITY | ||
| Max. swing diameter (mm) | Ø560 | |
| Max. turning diameter (mm) | Ø390 | |
| Max. turning length (mm) | 330 / 630 | |
| Chuck size | 6" (Big-bore) | 8" (Big-bore) |
| Bar capacity (mm) | Ø51 | Ø65 |
| SPINDLE | ||
| Spindle motor output kW (cont.) | 11 | |
| Spindle motor output kW (30 min.) | 15 | |
| Max. spindle speed (rpm) | 6,000 | 4,500 |
| X & Z AXES (opt.) | ||
| Max. X-axis travel (mm) | 230 | |
| Max. Z-axis travel (mm) | 330 / 630 | |
| TURRET | ||
| Stations | 12 / 10 | |
| LIVE TOOLING TURRET (opt.) | ||
| Stations | 12 / 24 | |
| Live tooling shank size | ER25 | |
| Live tooling rpm range (rpm) | 4,000 | |
| Y-AXIS (opt.) | ||
| Max. turning diameter (mm) | Ø310 | |
| Max. Y-axis travel (mm) | 105 (±52.5) | |
| TAILSTOCK (opt.) | ||
| Quill center taper | MT#4 (live center) | |
| Tailstock base travel (mm) | 300 / 500 | |
| SUB-SPINDLE (opt.) | ||
| Max. spindle speed (rpm) | 6,000 | |
| Spindle motor output kW (cont.) | 3.7 | |
| Spindle motor output kW (5 min.) | 5.5 | |
| FEATURES | |
|---|---|
| High-performance slant-bed with linear guideways, occupying only about 4.5 m² of floor space. | |
| Comprehensive turning and milling capabilities with a live tooling turret, Y-axis, and sub-spindle. | |
| HIGH RIGIDITY STRUCTURE | |
| The low center of gravity 30° slant bed design ensures maximum structural rigidity. | |
| High precision linear guide way design is used in X and Z axes to provide optimum control and efficient movement. | |
| THE ULTIMATE MACHINING POWER | |
| Two-speed motor-driven spindle meets both heavy cutting and precision machining requirements. | |
| Versatile configurations with options for 10 / 12 / 24-station turret or gang type tool holders. | |
| USER-FRIENDLY OPERATION | |
| High-efficiency programmable tailstock / High thrust servo tailstock. | |
| Tailstock can be equipped with MT#4 live center or deep hole drilling tool. | |
| INTEGRATED MACHINING | |
| Optional 12 / 24-station live tooling turret with live tool speed up to 4,000 rpm. | |
| Sub-spindle equipped with 5" chuck and driven by a built-in type motor, reaching a maximum speed of 6,000 rpm. | |
| Y-axis control with ±52.5 mm travel enables machining of complex workpieces. |
| ACCESSORIES | |
|---|---|
| 3-jaw chuck with one set of soft jaws | |
| Collet chuck | |
| Special work holding chuck | |
| Led florescent work light | |
| External work light | |
| Tri-color operation status light tower | |
| Tool presetter | |
| Parts catcher | |
| Chip conveyor | |
| Electrical cabinet A/C cooling system | |
| Electrical cabinet heat exchanger | |
| High pressure coolant system | |
| Oil skimmer | |
| Load monitor |

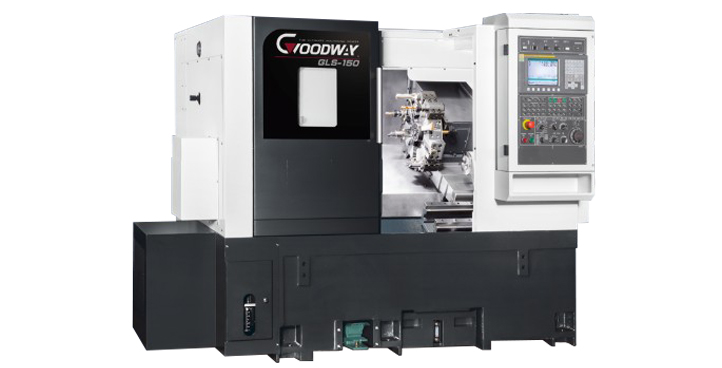

GOODWAY GLS-200 CNC LATHE
| GLS-150 | GLS-200 | |
|---|---|---|
| CAPACITY | ||
| Max. swing diameter (mm) | Ø500 | |
| Max. turning diameter (mm) | Ø360 / 280*1 | |
| Max. turning length (mm) | 500 | |
| Chuck size | 6" | 8" |
| Bar capacity (mm) | Ø51 | Ø65 |
| SPINDLE | ||
| Spindle motor output kW (cont.) | 11 (15 HP) | |
| Spindle motor output kW (30 min.) | 15 (20 HP) | |
| Max. spindle speed (rpm) | 6,000 | 4,500 |
| X & Z AXES | ||
| Max. X-axis travel (mm) | 210 | |
| Max. Z-axis travel (mm) | 520 | |
| TURRET | ||
| Stations | 12 / 10 | |
| LIVE TOOLING TURRET (opt.) | ||
| Stations | 12 | |
| Live tooling shank size | ER25 | |
| Live tooling rpm range (rpm) | 10 ~ 4,000 | |
| TAILSTOCK (opt.) | ||
| Quill center taper | MT#4 (live center) | |
| Quill diameter (mm) | Ø70 | |
| Quill travel (mm) | 150 | |
| Tailstock base travel (mm) | 290 | |
| *1: For M (Live-tooling turret) models only | ||
| FEATURES | |
|---|---|
| High efficiency and reliability with a footprint of only approximately 4.6 m². | |
| Live tooling turret and C-axis control functions are available as optional features. | |
| HIGH RIGIDITY STRUCTURE | |
| The low center of gravity 30° slant bed design ensures maximum structural rigidity. | |
| High precision linear guide way design is used in X and Z axes to provide the optimum control and efficient movement. | |
| THE ULTIMATE MACHINING POWER | |
| Two-speed motor-driven spindle meets both heavy cutting and precision machining requirements. | |

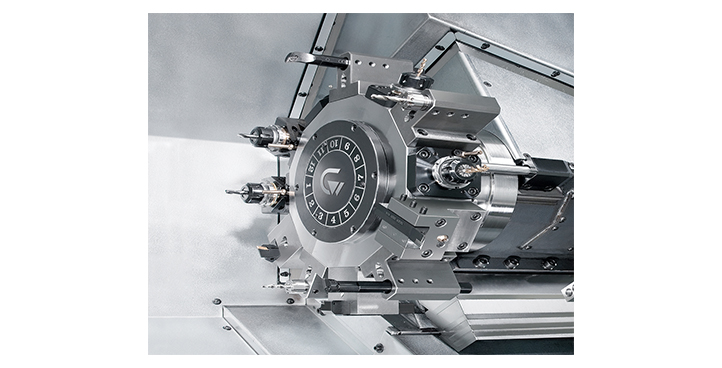

| High-efficiency 12-station servo indexing turret design; opposing tool change takes only 0.5 seconds. | |
| USER-FRIENDLY OPERATION | |
| High-efficiency programmable tailstock. | |
| The tailstock can be equipped with an MT#4 live center. | |
| INTEGRATED MACHINING | |
| Optional 12-station live tooling turret is available, with a maximum live tooling speed of up to 4,000 rpm. | |
| The live tooling turret, combined with GOODWAY live tool holders, delivers exceptional milling performance. |
| ACCESSORIES | |
|---|---|
| 3-jaw chuck with one set of soft jaws | |
| Collet chuck | |
| Special work holding chuck | |
| Led florescent work light | |
| External work light | |
| Tri-color operation status light tower | |
| Tool presetter | |
| Parts catcher | |
| Chip conveyor | |
| Electrical cabinet A/C cooling system | |
| Oil skimmer | |
| Oil mist collector | |
| Electrical cabinet heat exchanger | |
| High pressure coolant system | |
| Load monitor |

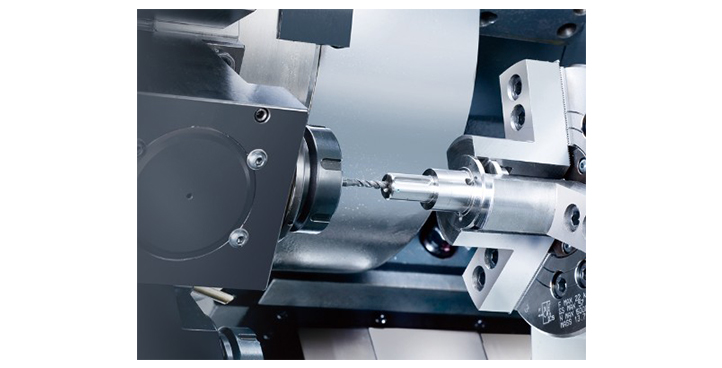

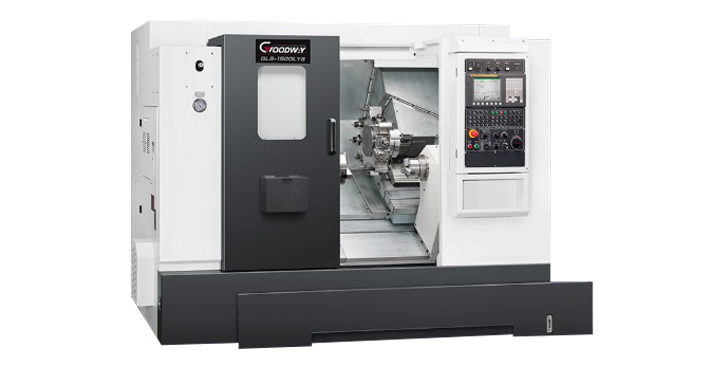

GOODWAY GLS-2000L CNC LATHE
| GLS-1500 / L | GLS-2000 / L | |
|---|---|---|
| CAPACITY | ||
| Max. swing diameter (mm) | Ø560 | |
| Max. turning diameter (mm) | Ø390 | |
| Max. turning length (mm) | 330 / 630 | |
| Chuck size | 6" (Big-bore) | 8" (Big-bore) |
| Bar capacity (mm) | Ø51 | Ø65 |
| SPINDLE | ||
| Spindle motor output kW (cont.) | 11 | |
| Spindle motor output kW (30 min.) | 15 | |
| Max. spindle speed (rpm) | 6,000 | 4,500 |
| X & Z AXES (opt.) | ||
| Max. X-axis travel (mm) | 230 | |
| Max. Z-axis travel (mm) | 330 / 630 | |
| TURRET | ||
| Stations | 12 / 10 | |
| LIVE TOOLING TURRET (opt.) | ||
| Stations | 12 / 24 | |
| Live tooling shank size | ER25 | |
| Live tooling rpm range (rpm) | 4,000 | |
| Y-AXIS (opt.) | ||
| Max. turning diameter (mm) | Ø310 | |
| Max. Y-axis travel (mm) | 105 (±52.5) | |
| TAILSTOCK (opt.) | ||
| Quill center taper | MT#4 (live center) | |
| Tailstock base travel (mm) | 300 / 500 | |
| SUB-SPINDLE (opt.) | ||
| Max. spindle speed (rpm) | 6,000 | |
| Spindle motor output kW (cont.) | 3.7 | |
| Spindle motor output kW (5 min.) | 5.5 | |
| FEATURES | |
|---|---|
| High-performance slant-bed with linear guideways, occupying only about 4.5 m² of floor space. | |
| Comprehensive turning and milling capabilities with a live tooling turret, Y-axis, and sub-spindle. | |
| HIGH RIGIDITY STRUCTURE | |
| The low center of gravity 30° slant bed design ensures maximum structural rigidity. | |
| High precision linear guide way design is used in X and Z axes to provide optimum control and efficient movement. | |
| THE ULTIMATE MACHINING POWER | |
| Two-speed motor-driven spindle meets both heavy cutting and precision machining requirements. | |
| Versatile configurations with options for 10 / 12 / 24-station turret or gang type tool holders. | |
| USER-FRIENDLY OPERATION | |
| High-efficiency programmable tailstock / High thrust servo tailstock. | |
| Tailstock can be equipped with MT#4 live center or deep hole drilling tool. | |
| INTEGRATED MACHINING | |
| Optional 12 / 24-station live tooling turret with live tool speed up to 4,000 rpm. | |
| Sub-spindle equipped with 5" chuck and driven by a built-in type motor, reaching a maximum speed of 6,000 rpm. | |
| Y-axis control with ±52.5 mm travel enables machining of complex workpieces. |
| ACCESSORIES | |
|---|---|
| 3-jaw chuck with one set of soft jaws | |
| Collet chuck | |
| Special work holding chuck | |
| Led florescent work light | |
| External work light | |
| Tri-color operation status light tower | |
| Tool presetter | |
| Parts catcher | |
| Chip conveyor | |
| Electrical cabinet A/C cooling system | |
| Electrical cabinet heat exchanger | |
| High pressure coolant system | |
| Oil skimmer | |
| Load monitor |
